Q-san - loudspeaker, Bobbin, Reinforcement,Coil Leadwire, wire

Q-san, your professional partner of audio parts!

Q-Sound Audio
Q-SAN

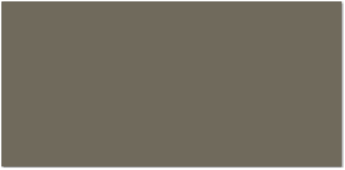

Q-san bobbin reinforcement Cequin Paper SCL
Base Material: Cequin Paper
Thickness Range: 0.125mm
Coated Varnish: Lock
Heat Resistance: Max. 250
Q-san bobbin reinforcement Nomax SNL
Base Material: Nomax
Thickness Range: 0.050 - 0.080mm
Coated Varnish: Lock
Heat Resistance: Max. 200

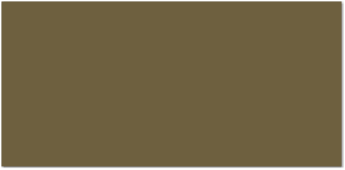

Q-san bobbin reinforcement Top Paper STL
Base Material: Top Paper
Thickness Range: 0.063 - 0.100mm
Coated Varnish: Lock
Heat Resistance: Max. 180
Q-san bobbin reinforcement Tufquin SQL
Base Material: Tufquin
Thickness Range: 0.080 - 0.125mm
Coated Varnish: Lock
Heat Resistance: Max. 250

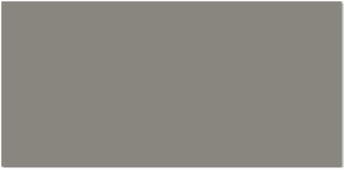

Q-san bobbin reinforcement Spunlaced Fabrics SSL
Base Material: Spunlaced Fabrics
Thickness Range: 0.050 - 0.130mm
Coated Varnish: Lock
Heat Resistance: Max. 250

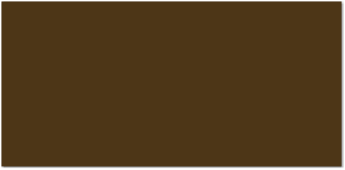

Q-san bobbin reinforcement Kraft Paper SKL
Base Material: Kraft Paper
Thickness Range: 0.050 - 0.100mm
Coated Varnish: Lock
Heat Resistance: Max. 150
*Color variation apply
